Smart-Jig

  • $0.00
    Unit price per


NEW LIFE FOR OLDER LOAD FRAMES*

AASHTO T-283 (TSR Test), ASTM D4867, EN 12697-12, and IDEAL-CT ASTM D8225-19 (*Load Frame Must Meet the Requirements of ASTM D 8225)

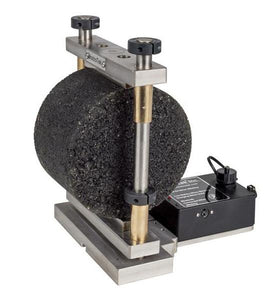

The Smart-Jig is a completely independent testing jig with the first integrated load cell, electronics and Bluetooth connectivity that makes capturing, reporting, and sharing data seamlessly.

PERFORM 2X THE TESTS WITH JUST 1 JIG!

The Smart-Jig is designed to perform three separate asphalt loading tests.

1.  TSR Tensile Strength Ratio (AASHTO T-283, ASTM D4867, EN 12697-12)
2.  NEW IDEAL-CT ASTM D8225-19

The SmartLoader Application allows users to quickly analyze test results from any Windows or Andriod smartphone or tablet.

Smart-TSR Tablet Report

Don’t throw away your old load frame- Older load frames have low data capture rates and outdated mechanical systems and plotters that are no longer supported.  Plotters are cumbersome to use, require selection of the right scale, use special graph paper and pens that are hard to find or dry out quickly, costing hundreds of dollars yearly to replace. (*Please call InstroTek for Smart-Jig compatible load frames)

Built for today & tomorrow's asphalt tests- The Smart-Jig uses integrated high-precision load cell and high-quality electronics to capture data at a super-fast 100 Hz.  The Smart-Jig is always ready and does not require any additional parts or accessories.  The included Andriod tablet is preloaded with the Smart-Jig software to plot, print and store data right from your device eliminating the need for manual calculation and potential operator mistakes.  Each unit is built to withstand the rugged construction industry environment and comes with a 1-year warranty.

The Smart-Jig is the perfect upgrade to extend the life of current analog load frame at a fraction of the cost.

Complete Smart-Jig Report


    Additional Specifications

    Power Supply: Rechargeable NiMH Batteries

    Load Cell Capacity: 50kN (10,000 lbs.)

    Dimensions: 11.5" x 5" x 10.5" height

    Weight: 18 lbs.


    Ask about the all NEW Smart-SCB Jig designed for the Semi-Circular Bend (SCB) test!
